Vertical Curves Conveyor and Tension Unit

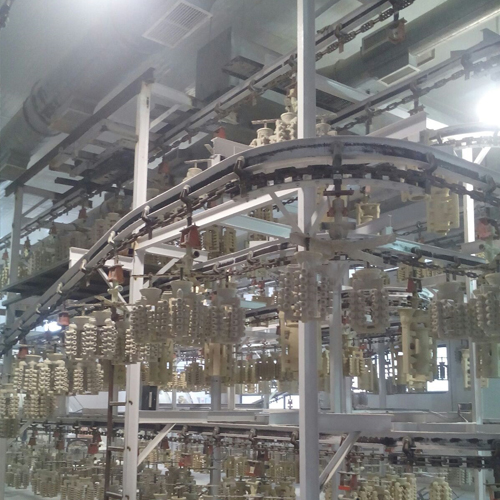

The Conveyor power Track vertical curves is fabricated into a similar section, which are braced with track brackets having a central line reduce of 900 mm and 1200 mm radius. This allows the chain to pass without the link fouling with the inside of the power track.with standard angle of 15°,30°, 45°, 60°, 90° or special angle required by clients.

The tension unit is fitted at the end of 180° horizontal standard curves, compressing two short lengths of power track. These power tracks are connected together by three adjustable screw roads and four guide roads. These screw rods are further fitted with springs, which provide tension to the conveyor chain.

The sturdy bi-planer chain includes articulating joints with tensile steel side plates. Double 48 mm diameter wheels are incorporated vertically and horizontally and are fitted with twin steel cage ball bearings for optimum efficiency and power track ability. The Conveyor Chain is provided in various sizes having 6", 8", 9", 10" or 12" pitch depending upon the horizontal and vertical band radius of chains.

A T.E.F.C. motor and worm reduction gearbox connected to the drive sprocket through “V” belts and “V” pulleys drive the Drive Unit. Each unit is fitted with a shear pin device to protect the conveyors from accidental damage due to overload or jamming. It not only empowers the system but can also provide the speed control or any other special characteristics desired in the system. It is a soundproof system suitable for trouble free service for years.
